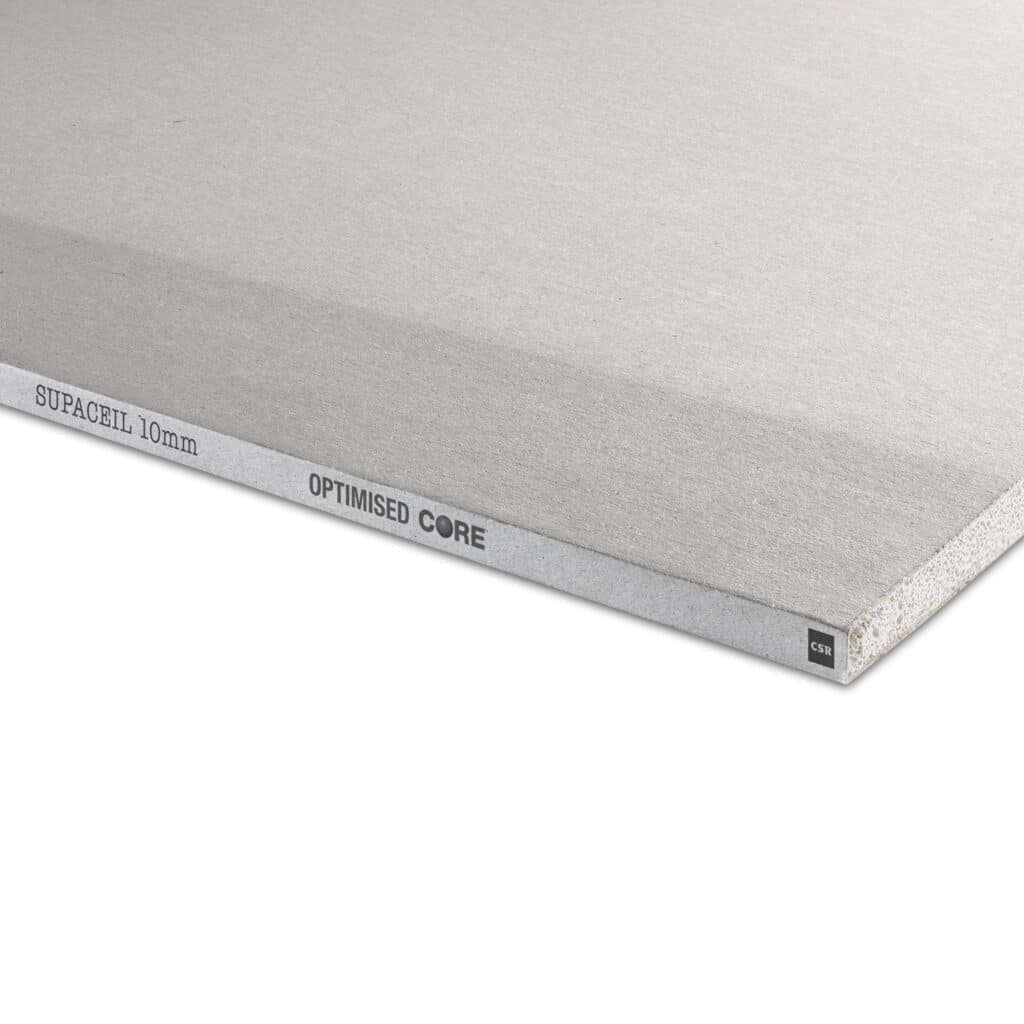

SUPACEIL™

Gyprock Supaceil stands above the rest when it comes to plasterboard in ceilings. Optimised Core technology provides significantly improved strength, handling, and performance in this lightweight 10mm thick plasterboard.

Product Overview

Gyprock Supaceil was the first product in Australia manufactured with Optimised Core technology which provides an advanced performance-to-weight ratio, meaning greater breaking strength in a substantially lighter board that continues to exceed the performance requirements of Australian Standard AS/NZS 2588. This improved strength ensures it will stay flatter, even when installed on ceiling joists with 600mm centres. There is also less chance of fixings pulling through the board when extra pressure from above is applied such as heavy ceiling insulation.

The board’s thicker face paper produces a crisper score and snap experience with cleaner cuts and squarer edges.

Typical Applications

Gyprock Supaceil is typically used as a superior ceiling lining option in residential applications and can be used to span up to 600mm joist centres. It is most suitable for areas of the home where exposure to moisture is not a concern such as bedrooms, living areas and entranceways.

Data Sheet

Safety Data Sheet

Product Options

Gyprock Supaceil is available in the following sizes:

Thickness	Width	Length
		2400	2700	3000	3600	4200	4800	6000
10mm	900	x		x	x		x
10mm	1200	x	x	x	x	x	x	x
10mm	1350	x		x	x	x	x	x

Stockholdings of specific sizes may vary in different regions.

Product Manufacture

Gyprock Supaceil is manufactured by CSR Gyprock in Australia to stringent product specifications.

Product Handling

Transportation and manual handling: Refer to the Gypsum Board Manufacturers of Australia (GBMA) website for recommended OH&S practices.

Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.

Health and Safety

Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.

Manufacturing Tolerances

Nominal Thickness	10mm ± 0.4mm
Nominal Widths	900mm, 1200mm and 1350mm ± 3mm
Nominal Lengths	From 2400mm to 6000mm ± 5mm, typically in 300mm increments
Squareness Cut ends	Cut ends ± 3mm in the width of the board

Physical Properties

Nominal Board Weight*	6.1kg/m², 6.2kg/m² in WA
Thermal Performance	0.04 – 0.05 m²K/W R-Value
Fire Hazard assessed to AS/NZS3837 AS/NZS3837 cone calorimeter test	Average Specific Extinction Area (ASEA) <250m²/kg Group Number 1 Report Reference WRA 45759
Combustibility	In accordance with BCA Clause C1.12, Gyprock Supaceil may be used wherever a non-combustible material is required by the Code.
Total Recycled Content	6.,%

*Subject to reasonable manufacturing variance.
